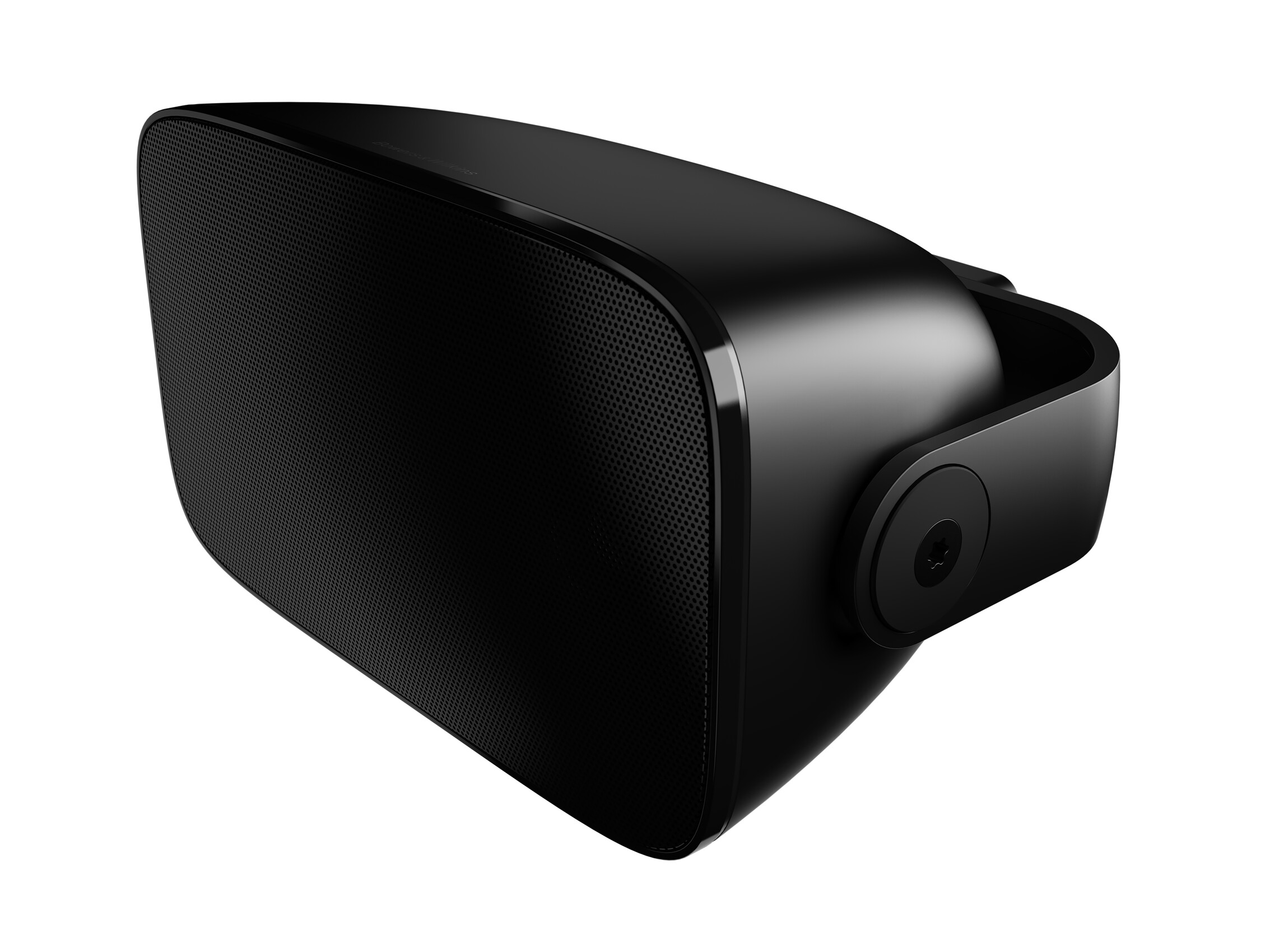

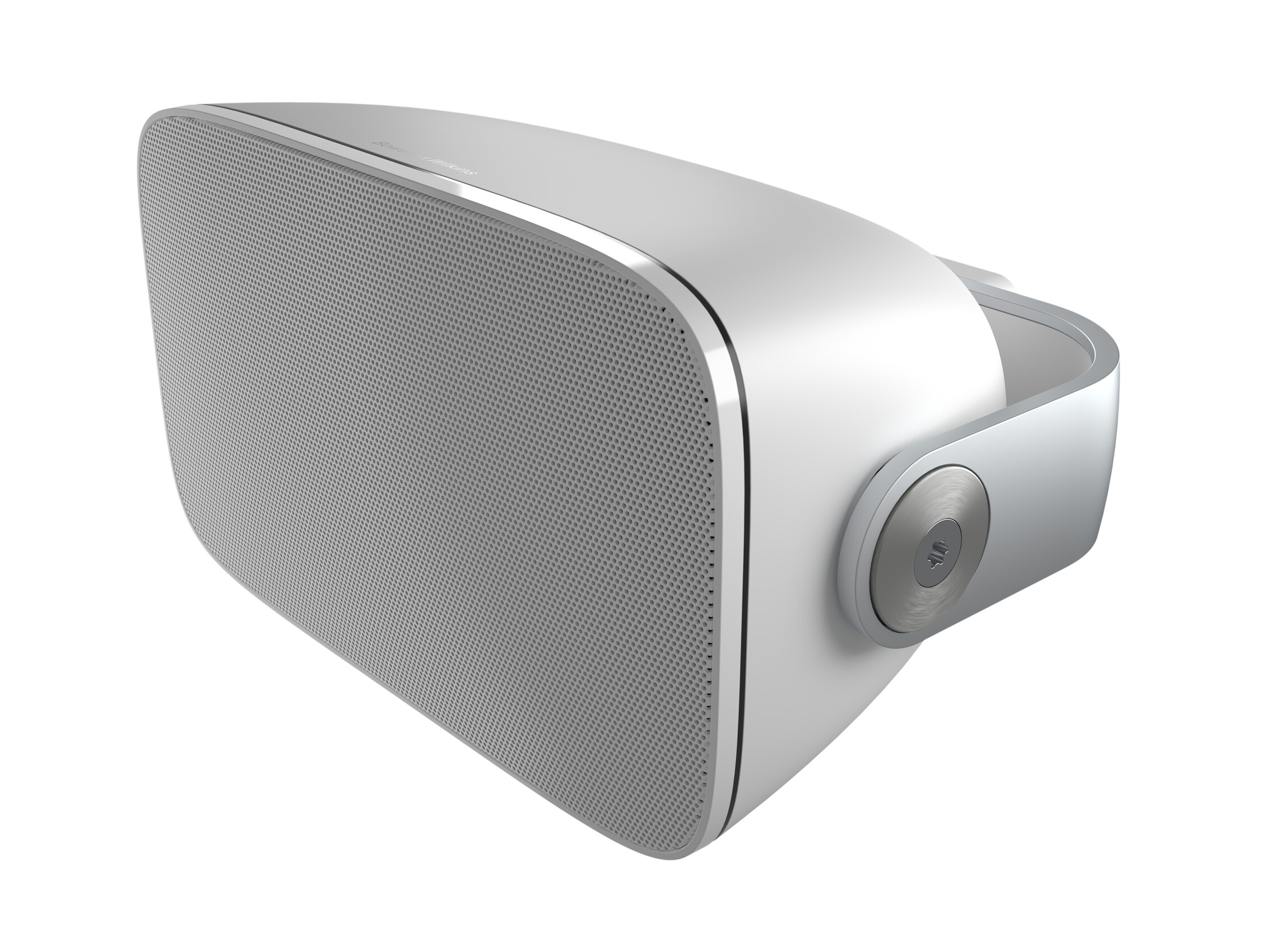

This Bowers & Wilkins architectural monitor is designed to be used anywhere: it's perfect for use around the pool or mounted outdoors year-round, thanks to its weather resistance.
Flexible, durable and great-sounding.
The easy-install bracket allows the AM-1 to be mounted vertically or horizontally, for total flexibility of installation.
Better bass, sealed tight
AM-1 needs a sealed enclosure to shrug off the rain and splashes, but that's not great for solid, powerful bass. So Bowers & Wilkins engineers designed this clever auxiliary bass radiator to give extra low-end punch from a compact enclosures.
Sound where you want it
We wanted to keep the AM-1 small, yet tough and flexible, so the combination of a slender wall-bracket, a clever one-plug mounting system and 220 degree rotation means we can deliver your music wherever you want it – indoors or out.
Nautilus™ tube loaded aluminum dome tweeter
Glassfiber cone bass/midrange
Auxiliary Bass Radiator (ABR)
2-way system with Auxiliary Bass Radiator (ABR)
1x ø25mm (1in) aluminum dome high-frequency
1x ø130mm (5in) glassfiber cone bass/midrange
-6dB at 46Hz and 50kHz (wall mounted)
51Hz - 22kHz on reference axis (wall mounted)
86dB (2.83V, 1m)
Total harmonic distortion
<1% 200Hz - 20kHz (86dB, 1m)
8O (5.2 O min)
Recommended amplifier power
20W - 100W into 8O on unclipped program
Dimensions (includes wall bracket)
Height: 310mm (12 1/4in)
Width: 180mm (7in)
Depth: 210mm (8 1/4in)
